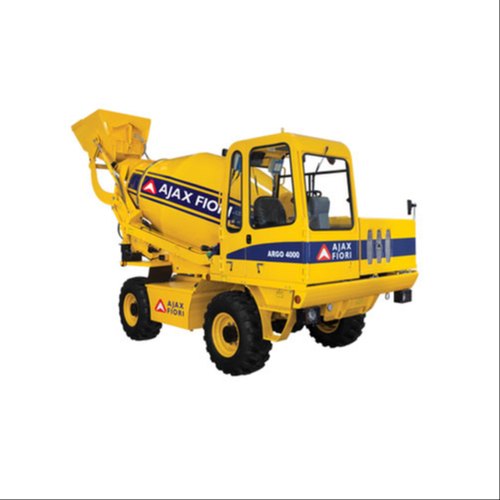

ARGO 4000 » CONCRETE PLANTS

Product Specification

Usage/Application Construction
Brand Ajax
Drum Capacity 5.3 cu m
Volumetric Capacity 4000 L
Drum Volume 5300L
Model/Type ARGO 4000
Water Tank Capacity 720 ltr
Drive Full time 4 wheel drive
Tyres 16.0/70-20-14 PR (Heavy Duty)
Engine KOEL 4R1040TA4 diesel engine turbocharged intercooled 80.9KW (110 hp) @ 2500 rpm BSIII
Number of Cylinder 4
Vehicle Weight 7610 kg
Laden Weight 17210 kg
Chasis Box Type
Drum Output 4 cu m/batch
Max Drum Rotation Speed 0-22 rpm
Fuel Tank Capacity 110 ltr
Hydraulic Tank’ 110 ltr
Bucket Capacity 590 ltr
Water Pump Capacity 230 lpm
Gradeability in Degree 25.6 Deg
Braking System Wet discs available in front & rear axles
Vehicle Speed 0-28 kmph

Product Description

Features:

  • Accurately measures all the ingredients to produce high quality concrete.
  • Highly efficient in steep inclined terrains
  • Advance technology for delivering concrete even at inclined position.
  • The Loading arm with tilting hatch bucket ensures smooth flow of material into the drum, thus minimising spillage.
  • Single joystick for loading operation,
  • Hydraulically operated levers for easy handling of operations.
  • 4 Wheel steering system allows manoeuverability in narrow space
  • and allows for tight turning radius. Crab steering enables side manoeuverability.
  • Provides complete visibility to the operator when the ARGO is in motion or during loading/unloading operation.
  • Excellent design permits ease of accessibilty and maintenance
  • The cabin is designed to enhance the efficiency of the operator and allowing him to work for longer hours.
  • On board water tank coupled with a high pressure jet system will allow you to keep your machine clean at the end of the day.
  • On board water tank coupled with a high pressure jet system will allow you to keep your machine clean at the end of the day.
  • Loading view Camera.
  • Admixture dosing unit.


Applications

  • Irrigation
  • Roads & Bridges
  • Buildings & Factories
  • Urban Infra
  • Power
  • Railways
