Rating	16.5kVA and 20 Kva
Voltage	400 /230 V
Frequency	50 Hz
Speed	1500 rpm

Cat™ Diesel Engine

• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Generator

• Matched to the performance and output characteristics of Cat engines
• Industry leading mechanical and electrical design
• Industry leading motor starting capabilities
• IP 23 Protection

Cat EMCP Control Panel

The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP 4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP 4 systems can be further customized to meet your needs through programming and expansion modules. The EMCP4.1 is fitted as standard.

Design Criteria

• The generator set is designed to meet ISO8528-5 transient response and NFPA 110.
• Cooling system designed to operate in 50˚C / 122˚F ambient temperatures with an air flow restriction of 0.5 in. water.

World Wide Product Support

Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

General

• Single wall 8 hour fuel tank.
• Circuit breaker, IEC, 3 pole.
• Industrial Silencer (10dBA)



C2.2 (50 Hz) Standard Equipment

Air Inlet System

• Air cleaner; light duty with disposable element



Control Panel

• EMCP4.1 control panel



Cooling System

• Radiator and cooling fan with guards
• Coolant drain line with valve
• Fan drive, battery charging alternator drive
• Caterpillar extended life coolant



Exhaust System

• Stub pipe, gaskets, raincap & SAE exhaust flange for customer use; shipped loose



Fuel System

• Standard open set fuel tank / base supplied
• Base, formed steel with single wall integral 8-hour fuel tank



Generators and Generator Attachments

• 12 leads
• IP23 Protection
• Voltage regulator (single phase sensing)
• Tower panel, IP22, bottom cable entry
• Circuit breaker, IEC, 3 pole, mounted in tower panel
• Segregated low voltage (AC/DC) wiring panel



Governing System

• Mechancial governing system



Lube System

• Lubricating oil
• Oil drain line with valve



Mounting System

• Captive linear vibration isolators between base and engine-generator
• includes lifting provisions and termination points for coolant



Starting / Charging System

• 12V battery with rack and cables



General

• Engine and alternator pre-paint, Caterpillar yellow



C2.2 (50 Hz) Optional Equipment

Global Certifications

• Certification for CIS



Circuit Breakers

• 4 Pole circuit breaker



Control Panel Options

• Volt free contacts for common alarm
• Volt free contacts for genset running
• Battery charger
• Emergency stop with key



Cooling System

• Coolant heater



Enclosures

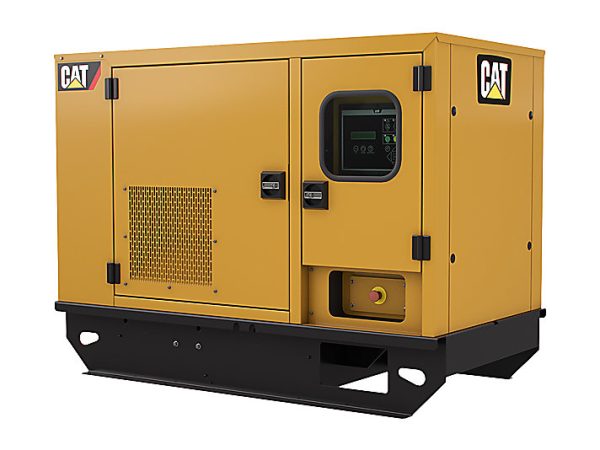

• Sound attenuated enclosure (GALV)
• Single point lift for enclosure



European Certifications

• Upgrade to STD set for “CE”



Fuel System

• Skidbase for open sets
• Skidbase for Enclosures
• DEFRA bunded fuel tank
• Low fuel level alarm
• Fuel transfer control
• 1000 hr extended service interval
• Base feet



Mounting Options

• Battery removal
• Industrial silencer removal
• Silencer installation kit



Accessories / Miscellaneous

• Radiator Stone Guard
• Packing Case – compact set
• Packing case – canopied set



Alternator Options

• Coastal insulation protection
