Cat™ Diesel Engine

• Reliable, rugged, durable design
• Field-proven in thousands of applications worldwide
• Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Generator

• Matched to the performance and output characteristics of Cat engines
• Industry leading mechanical and electrical design
• Industry leading motor starting capabilities
• High Efficiency

Cat EMCP Control Panel

The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.

Design Criteria

The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

Single-Source Supplier

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

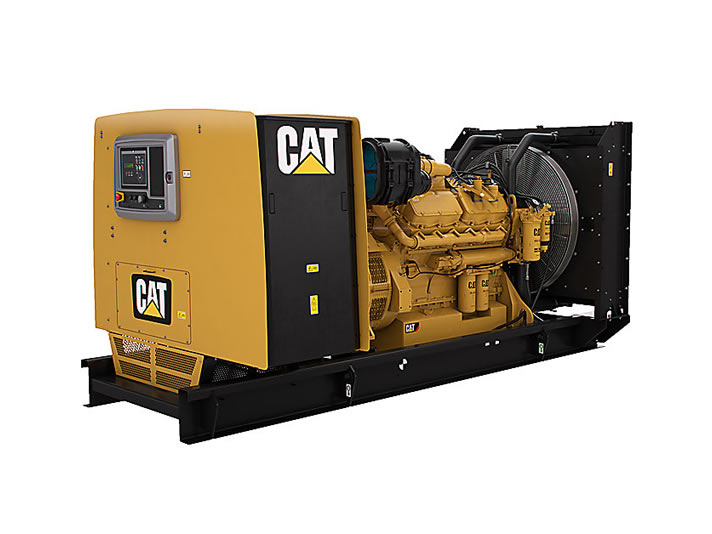

3412C (50 Hz) Standard Equipment

Air Inlet

• Air Cleaner

Cooling

• Package mounted radiator

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator
• Secondary fuel filter
• Fuel priming pump

Generator

• Matched to the performance and output characteristics of Cat engines
• Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
• IP23 Protection

Power Termination

• Bus Bar

Control Panel

• EMCP 4 Genset Controller

General

• Paint – Caterpillar Yellow except rails and radiators gloss black

3412C (50 Hz) Optional Equipment

Exhaust

• Exhaust mufflers

Generator

• Anti-condensation heater
• Internal excitation (IE)
• Permanent magnet excitation (PMG)
• Oversize and premium generators

Power Termination

• Circuit breakers, UL listed
• Circuit breakers, IEC compliant

Control Panels

• EMCP 4.2
• EMCP 4.3
• EMCP 4.4
• Generator temperature monitoring & protection
• Load share module
• Digital I/O module
• Remote monitoring software

Mounting

• Rubber anti-vibration mounts

Starting/Charging

• Battery chargers
• Oversize batteries
• Jacket water heater
• Heavy-duty starting system
• Charging alternator
• Air starting motor with control and silencer

General

• The following options are based on regional and product configuration:
• EU Certificate of Conformance (CE)
• CSA Certification
• EEC Declaration of Conformity
• Enclosures: sound attenuated, weather protective
• Automatic transfer switches (ATS)
• Integral & sub-base fuel tanks
• Integral & sub-base UL listed dual wall fuel tanks
